Hydraulic and pneumatic systems

Hydraulic and pneumatic systems are basic technologies for power transfer and control. Both systems use fluid power in distinct ways: hydraulics uses liquids (usually oil), and pneumatics uses compressed air or other gases.

Hydraulics operates on fluid pressure, where a pump compresses fluids, conduits carry fluids to the targeted section of a machine, and a piston generates the expected effect. Pneumatics use gas instead of fluid, forcing the compressed air through pipes to specific tools.

Hydraulics are used in machines for digging, lifting, and depositing materials during construction. In aerospace, planes use hydraulics to regulate flaps, brakes, and landing gears. Pneumatic systems are used to create motions like lifting, holding, pushing, and pulling. They are suitable for applications that demand a high force, speed, and accuracy in industries like food processing, construction, material handling, and packaging.

Exim Engineering is an authorized distributor of hydraulic and pneumatic systems and components in southern California. We stock a diverse inventory of hydraulic and pneumatic components, like hoses, filters, and valves made by top brands.

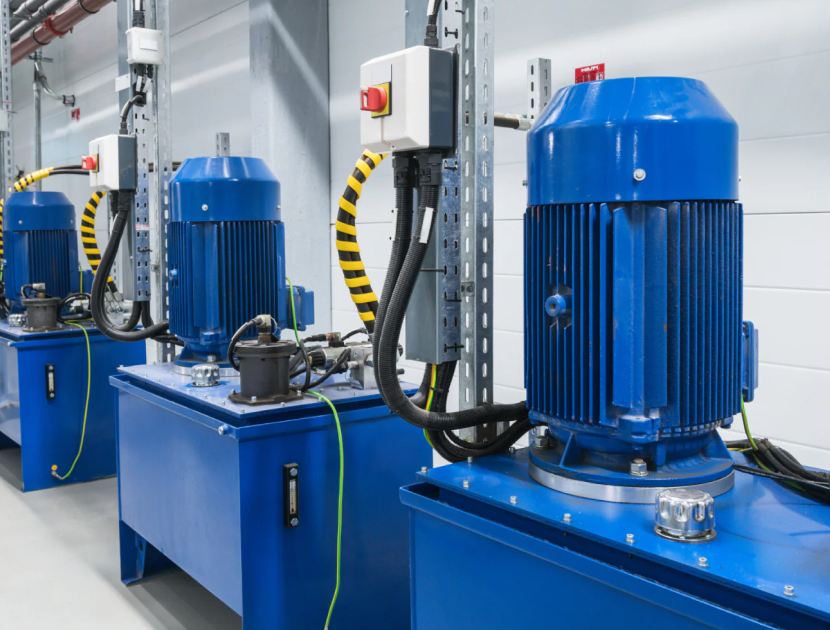

Types of Hydraulic and Pneumatic Systems

There are many kinds of hydraulic systems with varying use cases. The most widely used ones are piston pump, axial piston pump, vane pump, gear pump, and clutch pump. These devices use a rotary mechanism to function at low operational speeds.

A hydraulic pump with a high efficiency means that the percentage of output it produces is high, typically 90%. This implies that the pump needs minimal force or torque to drive flow at low pressure. Among the various types of hydraulic systems, a vane pump has the highest volumetric efficiency.

To select a suitable type of hydraulic system, determine the ideal flow rate, pressure, and type of fluid for your machine. Consider the operating environment and, finally, the budget you can allocate.

Types of Hydraulic and Pneumatic Systems

Hydraulic and Pneumatics by Category

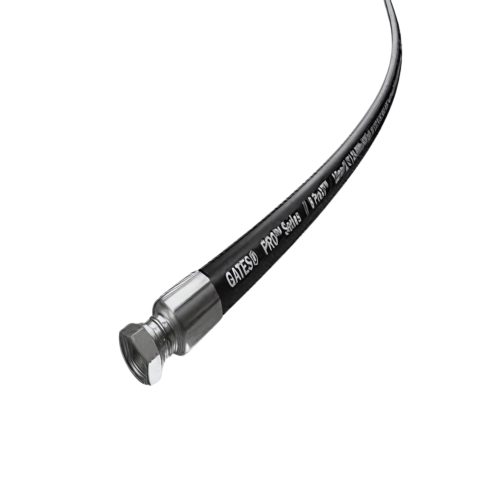

Hoses

Hydraulic hoses are flexible tubes that transport fluids, typically oil, in hydraulic systems. They are crucial in industrial applications such as manufacturing, construction, and transportation and are usually made of synthetic rubber, thermoplastic, or reinforced plastic materials.

Hydraulic Cylinder

Hydraulic cylinders are often a part of heavy machinery, construction equipment, and industrial manufacturing. They help in lifting heavy loads, pushing materials, and providing precise movements and usually have a cylindrical barrel, a piston, and a piston rod.

Hydraulic Filter

A hydraulic filter is an essential element of a hydraulic system that removes contaminants from the fluid. The hydraulic fluid in a hydraulic system must be clean and free from impurities to prevent damage to the system components and maintain the system’s performance.

Hydraulic Valves

Hydraulic valves regulate the flow, pressure, and direction of hydraulic fluid in a hydraulic system. They are critical components that regulate the operation of hydraulic machinery. These valves can be operated manually, mechanically, electrically, or hydraulically.

’

Bearings By Brand

Industrial Hydraulic and Pneumatic Components

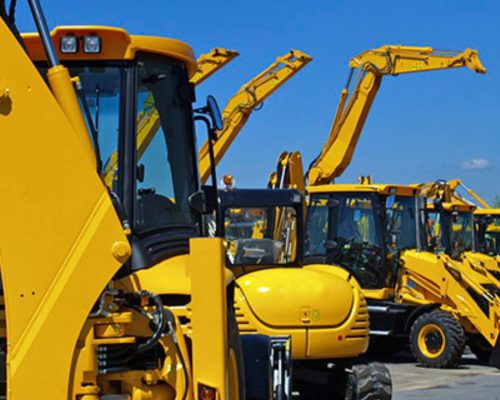

Hydraulic hoses have durable synthetic rubber construction. It permits resistance to oil and chemicals, and the hose stays protected from environmental elements, ozone, abrasion, and corrosion. Hydraulic hoses are key components of applications like excavators, dump trucks, loaders, bulldozers, pavers, harvesters, and more.

Hydraulic cylinders are commonly made from aluminum and high-strength alloy steel. They can be used for low-pressure corrosive environments and to meet high-pressure cylinder needs. High-quality hydraulic cylinders can withstand high mechanical loads and pressure. Their major usage is in food processing, waste management, and the marine industries.

Hydraulic filters swiftly remove impurities from fluids. They have a high micron rating to remove contaminants, a high beta ratio for optimal filtration, and can tolerate high pressure. They keep your hydraulic system clean and prevent expensive repairs. Hydraulic filters are integral parts of applications in the automotive, aerospace, and marine industries.

Hydraulic valves regulate the directional flow, modify pressure level, and allow precise control over the machine’s functioning. Their are different types of hydraulic valves, like hydraulic cartridge valves, hydraulic directional control valves, hydraulic flow control valves, and hydraulic relief valves. Valves are particularly vital to prevent overpressure in high-pressure applications.

Industrial Applications of Hydraulic and Pneumatics

Hydraulic systems are highly adaptable and have the ability to be used in various sectors. Here are the most prevalent uses:

Construction

Hydraulic systems power heavy machines in construction. These include excavators, cranes, and bulldozers. They allow transporting and lifting of massive materials so construction jobs turn more efficient. Pneumatic systems deliver power consistently during applications like drilling, hammering, or sanding.

Automotive Industry

Hydraulic systems are utilized in power steering, braking, and automatic transmissions to provide the force and control required for a smooth, responsive vehicle operation. Compressed air-driven pneumatic systems are used at different stages of automotive manufacturing, such as painting, inflating tires, cleaning, and vehicle assembly.

Aerospace

Hydraulic systems are critical to aircraft operation, particularly for controlling landing gear, brakes, and flight control surfaces. Hydraulics are reliable and precise, ensuring safe and smooth operations. Pneumatic systems in aircraft use parts to maintain raised pressure, cooling, and actuation. When part of sensors, pneumatics provide information about the speed and altitude of the plane.

Manufacturing

Hydraulic systems are essential in metal forming, stamping, and injection molding. Hydraulic presses shape and cut materials with great accuracy, instilling confidence in their precision. Pneumatic systems use compressed air to drive actuators and cylinders in manufacturing processes like material handling, assembly operations, and packaging.

Marine

Hydraulic systems steer, stabilize, and regulate onboard machinery on ships and submarines. They are also employed in offshore drilling rigs and other marine applications that require robust and reliable power. The easy control and quick response times of pneumatic systems drive tools in many shipboard equipment. These include valves, actuators, and machines.

Agriculture

Tractors, harvesters, and other agricultural machinery rely on hydraulic systems to control implements and accomplish operations such as plowing, planting, and harvesting. Pneumatics use air pressure to move different types of dense and light materials through pipes. Crop sprayers, tractors, and conveyors use compressed air to work optimally.

Mining

In the mining industries, Hydraulic systems power equipment such as drills, loaders, and crushers, allowing them to function in harsh conditions and extract resources more efficiently. Pneumatic actuators in mining applications are capable of quick movements with significant force and torque. The units are easy to sync and program with controls like valves, sensors, limit switches, and cyclo grams.

Exim Engineering: Trusted Authorized Distributor of All Hydraulic and Pneumatic System Needs

Exim Engineering is your trusted partner for all hydraulic system needs in various industries, including construction, manufacturing, and automotive. We offer high-quality products, hydraulic and pneumatic system components, like hoses, cylinders, filters, and valves designed to maximize efficiency, reduce downtime, and extend equipment lifespan. We provide on-demand technical support and deep industrial expertise, and are committed to making the latest hydraulic and pneumatic components widely accessible. Trust Exim’s experts for reliable support and solutions.
