Cement and Aggregate
The cement industry plays a vital role in modern construction by providing essential building materials and infrastructure worldwide. The industry is committed to contributing to the world’s growth while moving towards environmentally sustainable practices. Cement is a crucial material in the construction industry, but its production is a complex process that involves multiple steps and specialized equipment.
There are several primary steps and pieces of equipment involved in manufacturing cement.
Primary Steps and Equipment Used in Cement Manufacturing
Raw Material Extraction
Quarrying extracts raw materials such as limestones, slates, and some shales from hard rocks for cement production, using blasting when necessary.
Excavators dig directly into soft rocks like chalk and clay. The excavated materials can be transported to the crushing facility via trucks, rail freight cars, conveyor belts, or ropeways.

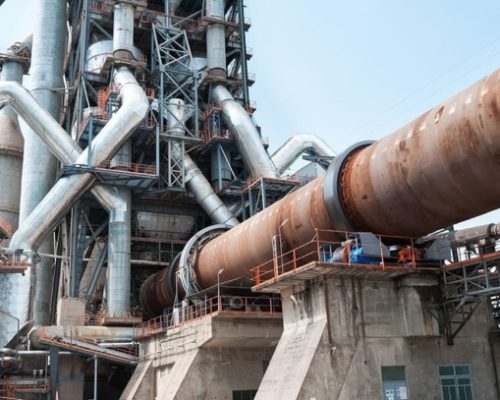

Pumping
Pumping is vital in cement manufacturing, especially when dealing with slurry (a mixture of water and raw materials). Pumps transport slurry from grinding mills to kilns for further processing.
This technology is used in factories where the raw materials are too moist for dry processing. Pumps also move liquid additives and water during grinding, ensuring proper material flow and consistency.

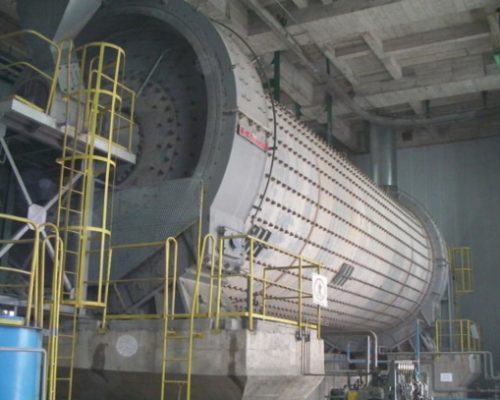

Crushing and Grinding
Raw materials are extracted and transported to the plant. Various crushers, such as jaw, cone, and impact crushers, are used in the plant to break down raw materials into smaller sizes.
Once the materials are crushed, they are further processed into finer particles using ball or roller mills.

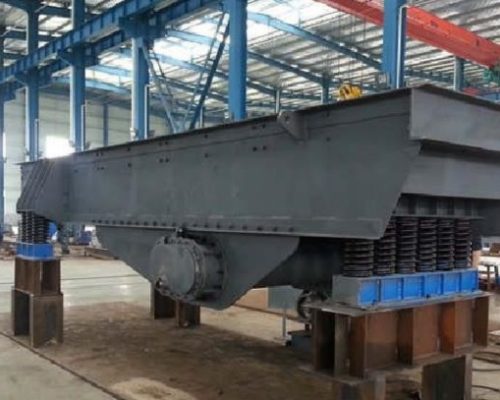

Screening
The screening process involves passing crushed and powdered raw materials through screens to separate finely ground particles from those that are too big and need further grinding. This step is critical to ensure homogeneous particle size distribution, improving the blend’s quality and consistency.
Conveyor
Conveyor systems are extensively used in the cement manufacturing process. Once the cement particles are screened, they are transferred to blending silos through conveyor belts and bucket elevators.

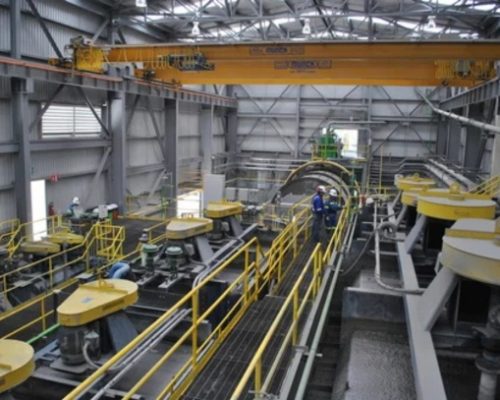

Blending
The process involves grinding the raw materials into fine particles mixed to form a uniform slurry. This step is crucial for maintaining consistent cement quality and is typically performed using blending silos equipped with precise mechanisms that add the various raw materials in the correct proportions.

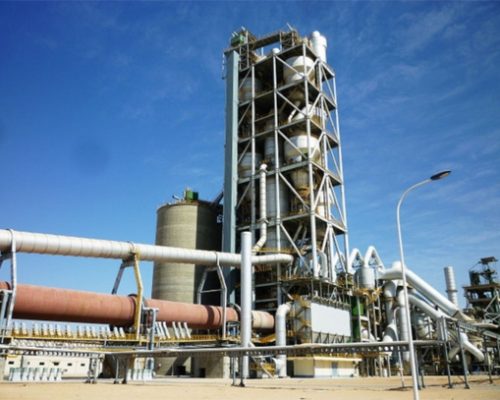

Preheating and Calcining
The raw material mixture is first homogenized and then preheated using cyclone preheaters. These preheaters use the hot gases from the kiln to increase the temperature of the ingredients. During this preheating stage, the mixture undergoes calcination in a calciner. This process decomposes calcium carbonate into calcium oxide and carbon dioxide.

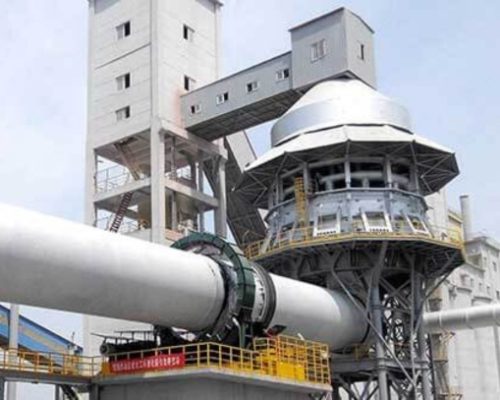

Clinker Production in the Kiln
The rotary kiln is the central component of cement manufacturing. It preheats the mix and generates chemical reactions, resulting in clinker. Temperature management is crucial and is handled by modern sensors.
Cooling
After the clinker creation process is complete, the material undergoes rapid cooling with the help of clinker coolers, which use air blowers and sometimes water sprays.
Grinding
After the clinker has been cooled, it is finely ground into cement using cement mills. At this stage, additives such as gypsum, which controls the setting qualities of the cement, can also be added. Modern cement factories use roller presses, vertical mills, or ball mills to achieve the desired fineness of the cement.
After being ground into a fine powder, cement is transported by pneumatic pumps to storage silos, where it is packaged in paper bags or shipped in bulk containers.
Exim Engineering is committed to delivering exceptional solutions for the cement industry, from quarrying to the final product that you sell. Our team consists of experienced professionals who have been offering high-quality products to the cement industry for many years.
We provide integrated solutions to help our customers improve their efficiency and productivity, making their operations more accessible and cost-effective. We are confident that by working with the most skilled people, we can offer the best possible service to our consumers.
FUCHS CEPLATTYN GT 10
Light-colored, high-viscosity adhesive lubricant containing white solid lubricants, specifically formulated for open gears.
The cement industry has tough conditions, so you need a lubrication partner who understands exactly how to help you. You need someone who provides all the lubricants and solutions needed for every step of cement production, anywhere in the world. Our skilled experts are always ready to support you whenever you need help. We offer many services to keep your equipment running smoothly, efficiently, and reliably. This allows you to focus completely on what you do best manufacturing cement.
Traditional Open Gear Lubricants
Traditional lubricants for open gears used in rotating equipment like kilns and mills each have their own strengths and weaknesses. They can be grouped into three categories:
Brown Asphaltic Lubricants: These are easy to apply because they contain solvents. But after the solvent dries, they can become hard and build up in the gear teeth.
Black Greases: Easy to apply and contain protective solids, like graphite, that help lubricate. However, they are not clear, making it difficult to inspect the gears, and they don’t drain well unless the gear cover is designed to help drainage.
High-Viscosity Fluid Lubricants: These flow well and are clear, making gear inspection easier. But they don’t contain protective solids and may not stay in place well enough to protect gear surfaces during periods when equipment isn’t running.
Performance & Features
Temperature range: 0°C to +140°C (32°F to 284°F)
Best applied at temperatures above: +10°C (50°F)
Excellent protection against wear
Works very well even when gears run dry
Suitable for all kiln and mill gear drives
Does not ignite on hot kiln surfaces
Creates a thick, stable lubricant film
Maintains stable lubrication even when gears are stopped
Contains no solvents or bitumen
CEPLATTYN GT 10 is a thick, sticky lubricant designed for heavy-duty open gears, such as those used in kilns, mills, and dryers in industries that process raw materials. It uses a synthetic oil base, advanced additives, and special white lubricants that actively protect against wear. This unique formula provides excellent protection and creates a stable, strong lubricant layer.
When used together with CEPLATTYN GT P (Primer) and CEPLATTYN GT RN (Running-In), it forms the complete FUCHS Multi-Phase Lubrication System to keep your equipment running smoothly.
Aftermarket Bottle Capping Solutions for the Beverage & Juice Bottling Industry
Couplings
Featured Products
CEPLATTYN GT 10
CEPLATTYN GT 10 is specifically formulated for lubricating open gears under demanding conditions. It is ideal for low-speed furnace drives with high tooth flank temperatures, high-power mill drives, and open gears that frequently operate in start-stop cycles, ensuring optimal performance and protection.

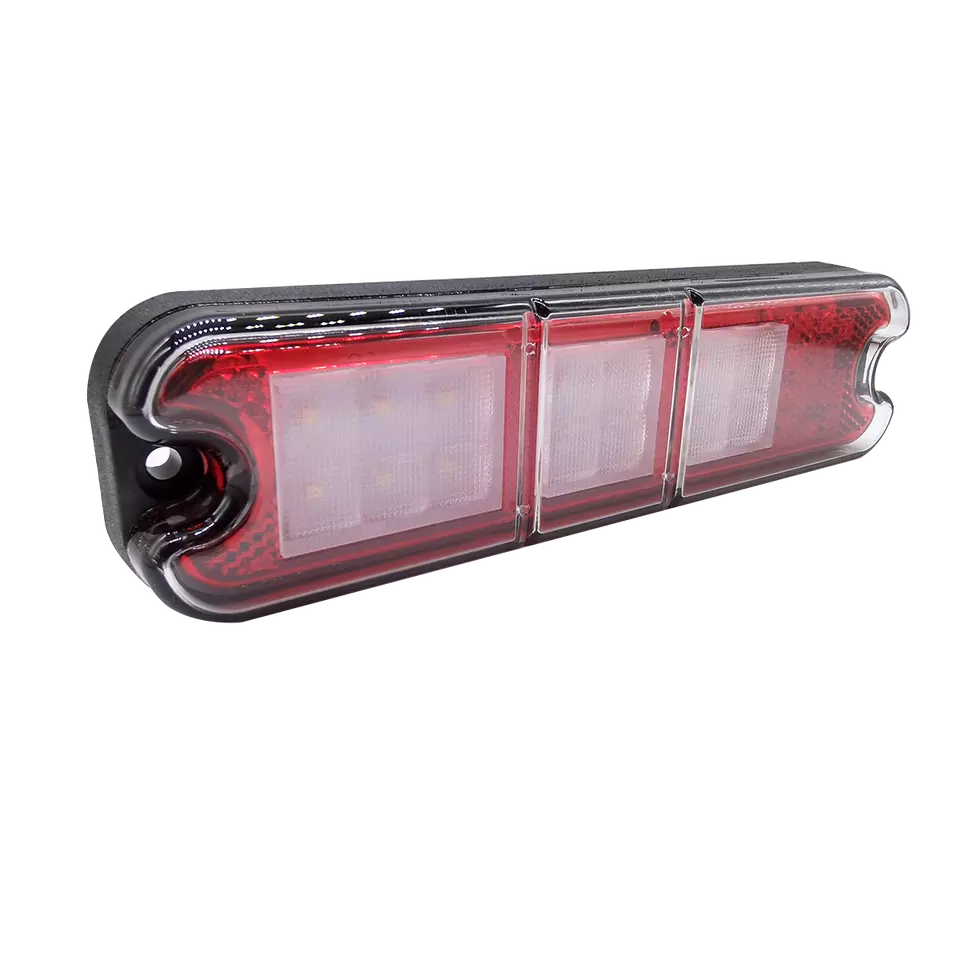

LED Tail Light 10-80V 2056824 LED Tail Light 10-80V Sealed Taillight For Hyster Forklift 5800372-07
“Replace Forklift Yale NO. : 5800372-07 Replace Forklift Hyster NO. : 2056824 10-80V DC (12V 24V 48V 60V 80V )”
Compact 5-Port Solenoid Valve/Plug-in Type JSY1000/3000/5000
Power consumption: 0.1 W (With power-saving circuit), 0.4 W (Standard) ・Connector type manifold ・A 4-position dual 3-port valve is available

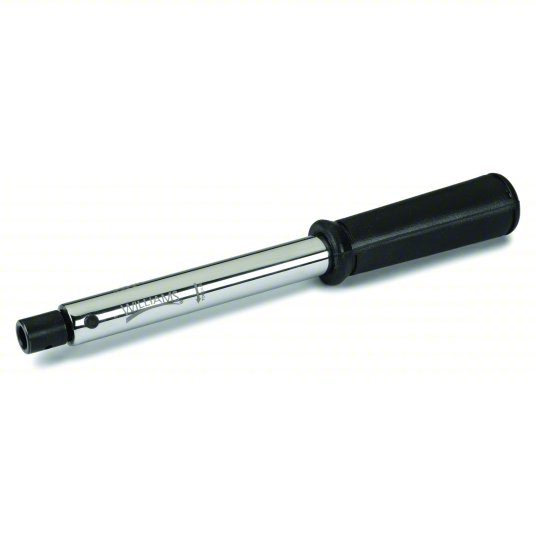

WILLIAMS Single Setting Torque Wrench
Interchangeable-head torque wrenches allow for the attachment of various torque wrench heads, minimizing the need for multiple wrenches and ensuring accurate and proper tightening of fasteners.
4 X 200 LONGHORN MEGAFLEX 150 PSI
Transferring refined fuels such as commercial gasoline and diesel, oils, and other petroleum products. This product is perfect for applications like tank trucks, fuel farms, and oilfield service trucks, where a highly flexible, kink-resistant fuel transfer hose is essential.
KNF UN726FTI EX Explosion Proof Motor Vacuum Pump, PTFE/PTFE; 0.6 cfm/27.95"Hg-20psi
Diaphragm pumps are equipped with Class I, Division 1, Groups C & D explosion-proof motors, ensuring safe operation in hazardous environments. Built for continuous, heavy-duty performance, these pumps incorporate ball bearings throughout to deliver unmatched reliability and durability.
RE Series Gearboxes
The RE series offers a comprehensive selection of input and output accessories, providing versatility for various applications.
3196 i-FRAME Process Centrifugal Pump
“Model: 3196 i-FRAME Capacities to 7000 GPM (1590 m 3 /h) Heads to 730 feet (223 m)”
ECP4104T 30HP, 1770RPM, 3PH, 60HZ, 286T, 1060M, TEFC, F1
BRAND: Baldor SKU: 23349 WEIGHT: 467.000 lb UOM: each

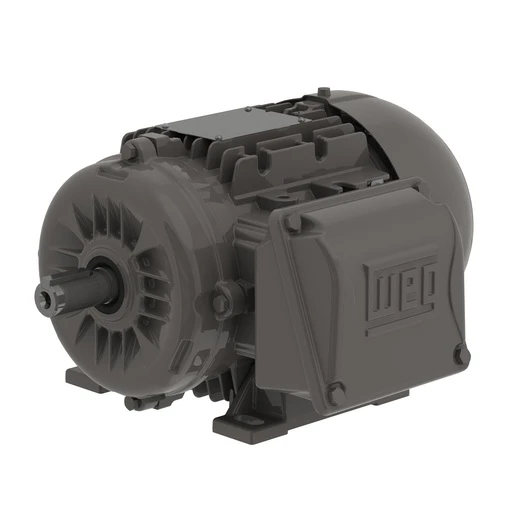

Multimounting High Efficiency 0.33 HP 2P 63 3Ph 230/460//380-415 V 60 Hz IC411 - TEFC - B3L€ Multimounting High Efficiency 0.33 HP 2P 63 3Ph 230/460//380-415 V 60 Hz IC411 - TEFC - B3L€
Standard NEMA MG-1 Frequency 60 Hz Voltage 230/460//380-415 V Number of poles 2 Degree of Protection IP55 Synchronous speed 3600 rpm
Timken 29438EJW18W66 Spherical Roller Thrust Bearing
Thrust Roller Spherical Bearing with a 190mm Bore 1 and 264.414mm Bore 2, featuring a 380mm outside diameter and 115mm height.

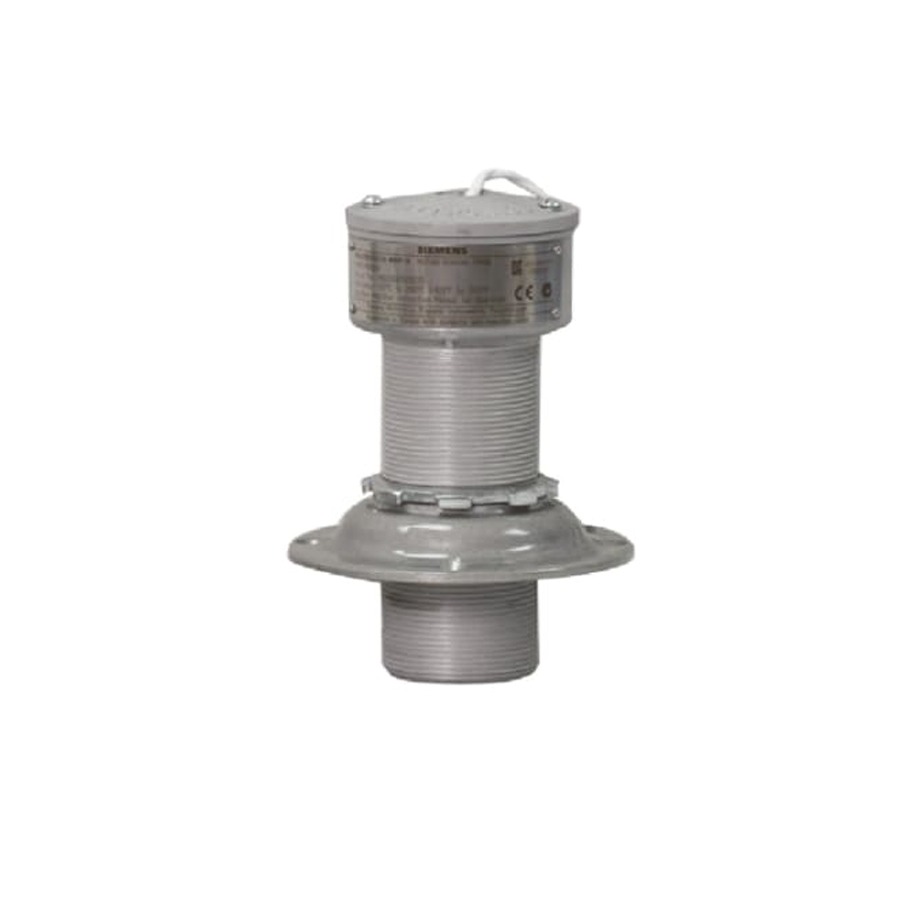

7MH7146-0EA Siemens
Milltronics Motion Sensing Probes are heavy-duty devices with a 100 mm measuring range, designed for use with RMA, MFA 4p, WM300 MFA, or other compatible controls.
Ultragard Heavy Duty 8 Mil Nitrile Exam 12" Powder Free Gloves
The Ultraguard High Risk Nitrile Exam Gloves are powder-free and latex-free, offering a safe and reliable option for high-risk environments. These 8-mil nitrile gloves feature a textured surface for enhanced grip and an extended length to provide superior wrist protection.
9691 SPX Power Team "Y" Manifolds 3/8"
NPTF Ports UPC #662536210652 SKU 9691-662536210652 Part #9691 SPX Power Team “Y” Manifolds 3/8″ NPTF Ports, 1 lbs.

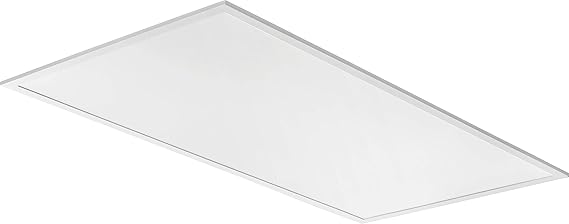

Lithonia Lighting CPX 2X4 ALO8 SWW7 M2
Brand Lithonia Lighting Colour 3500k | 4000k | 5000k Material Aluminium Style Switchable Lumens Light fixture form Recessed”
Motorola XPR 7550e
UHF 403-512 Digital Display Portable Two-Way Radio Bluetooth WIFI AAH56RDN9RA1AN
QC1+™ Cleaner HD
The Martin® QC1+™ Cleaner HD represents a groundbreaking advancement in belt cleaner technology, featuring a patented design that enhances operational productivity while significantly lowering costs.

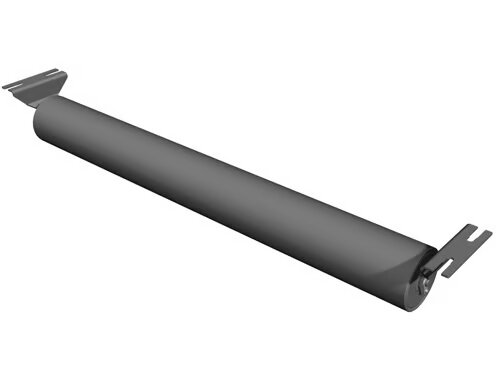

D5-R-36SB
Return Idler – CEMA D Rating, 5 in Roll Diameter, 36 in Belt Width MI ITEM #02751539 MFR #D5-R-36SB

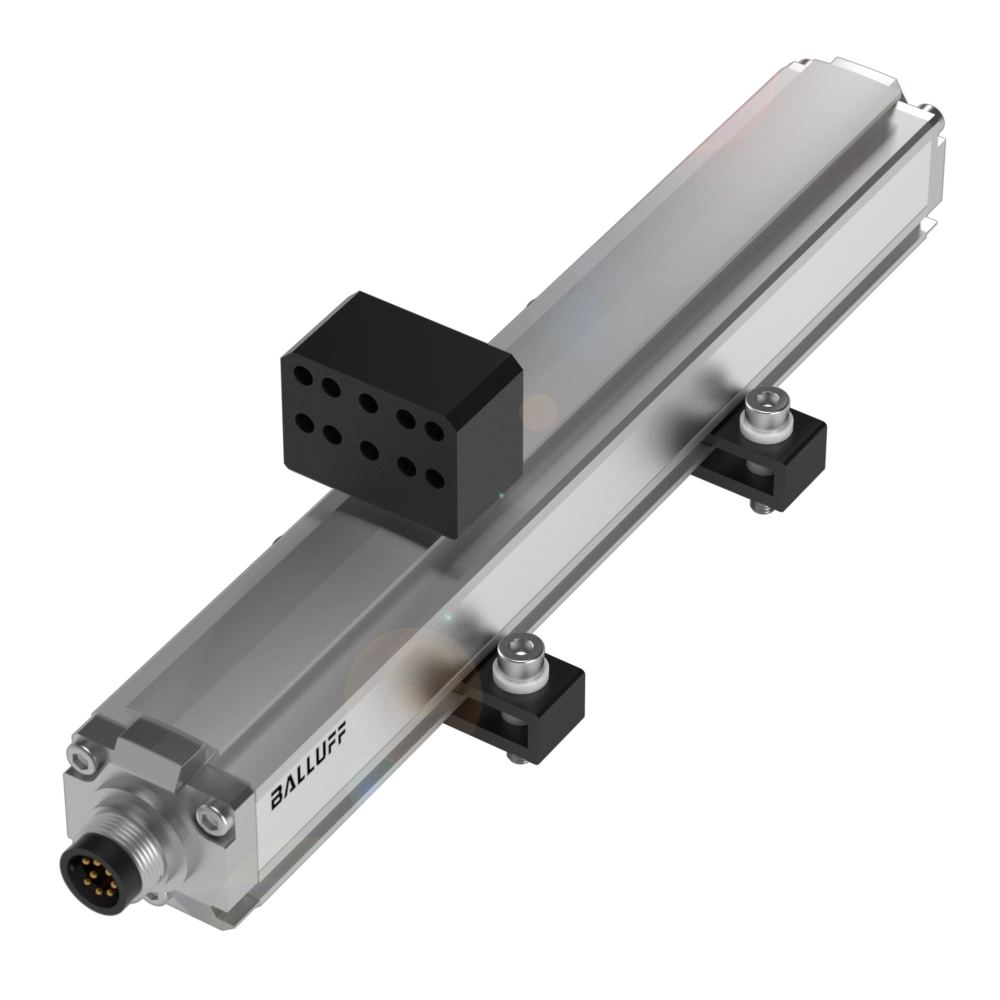

BTL29R7 BTL7-S512-M0100-P-S32
Style: Profile series Mounting part: Mounting clamps Housing material: Aluminium, Anodized Magnets, number max.: 1 Connection: Connector, M16x0.75, 8-pin
3RT1064-6AF36
The power contactor is designed for AC-3e/AC-3 applications, rated at 225 A and 110 kW / 400 V AC (50-60 Hz). It features a DC control voltage (Uc) of 110-127 V and is configured as a 3-pole device. It includes auxiliary contacts with 2 NO (normally open) and 2 NC (normally closed) configurations.

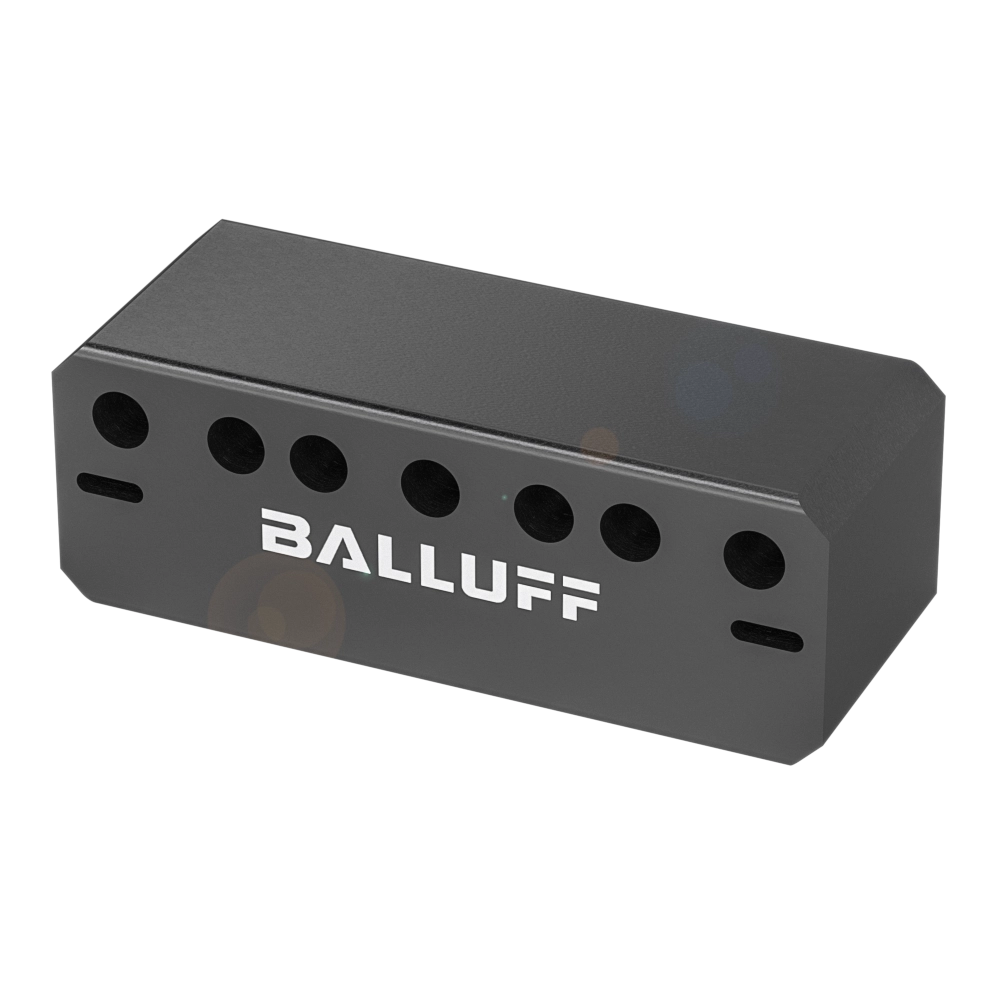

BAM014T
