Ratings
HP: 200 hp
Frequency: 50/60 Hz
Phases: Three-Phase
Amps – Full Load: 246 A
Amps – Service Factor: 282 A
Volts: 380 VAC / 460 VAC
Voltage Tolerance (%): -10.0% / +10.0%
Wire: 3-Wire
Motor Connection: DOL
Thrust Bearing Rating: 10000 lb
Lead Length: 13 ft

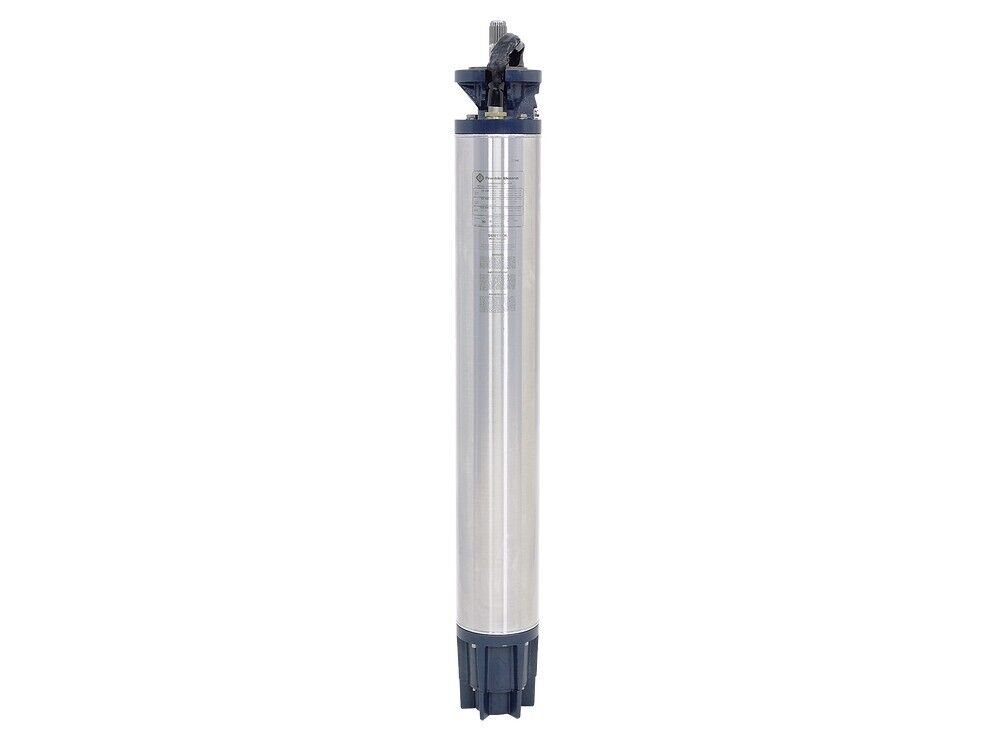

Motor: Encapsulated
Continuous Duty: Yes
Efficiency Service Factor Load [%]: 88.00 %
Protection [IP]: IP68
Lead Wire Size: AWG #2
Motor Insulation Classification: F
Poles: 2
S.F.: 1.15
Motor Cooling: Water
Minimum Cooling Flow: .50 ft/sec
Motor Ambient Temperature Rating Nominal: 86 ?F
Thrust Bearing Rating: 10000 lb
Motor Adapter: Double flange
Rotation: Counter clockwise facing the shaft
SubTrol Heat Sensor YES: Yes
Materials of Construction
Motor Shaft End – Material: 17-4SS
Thrust Bearing: Kingsbury
Seal Mechanical Seal: SiC/SiC
Lead Insulation Material: XLPE
Diaphragm Material: Nitrile Rubber (NBR)
Motor Bottom End Bell Material: Cast Iron with E-Coat Paint
Motor Fill Solution (Water Soluble / Non Toxic): YES
Motor Fill Solution: FES91
Motor Top End Bell Material: Cast Iron with E-Coat Paint
Shaft Slinger Material: No
Stator Ends Material: Carbon Steel
Stator Fill: Resin
Stator/ Motor Shell Material: 300 Series SS
Winding Material: Copper
Dimensions
Motor Diameter – Physical Diameter: 7.70″
Motor Length: 94.8 ”
Product Weight: 925 lb
Product Weight with Pack: 1040 lb

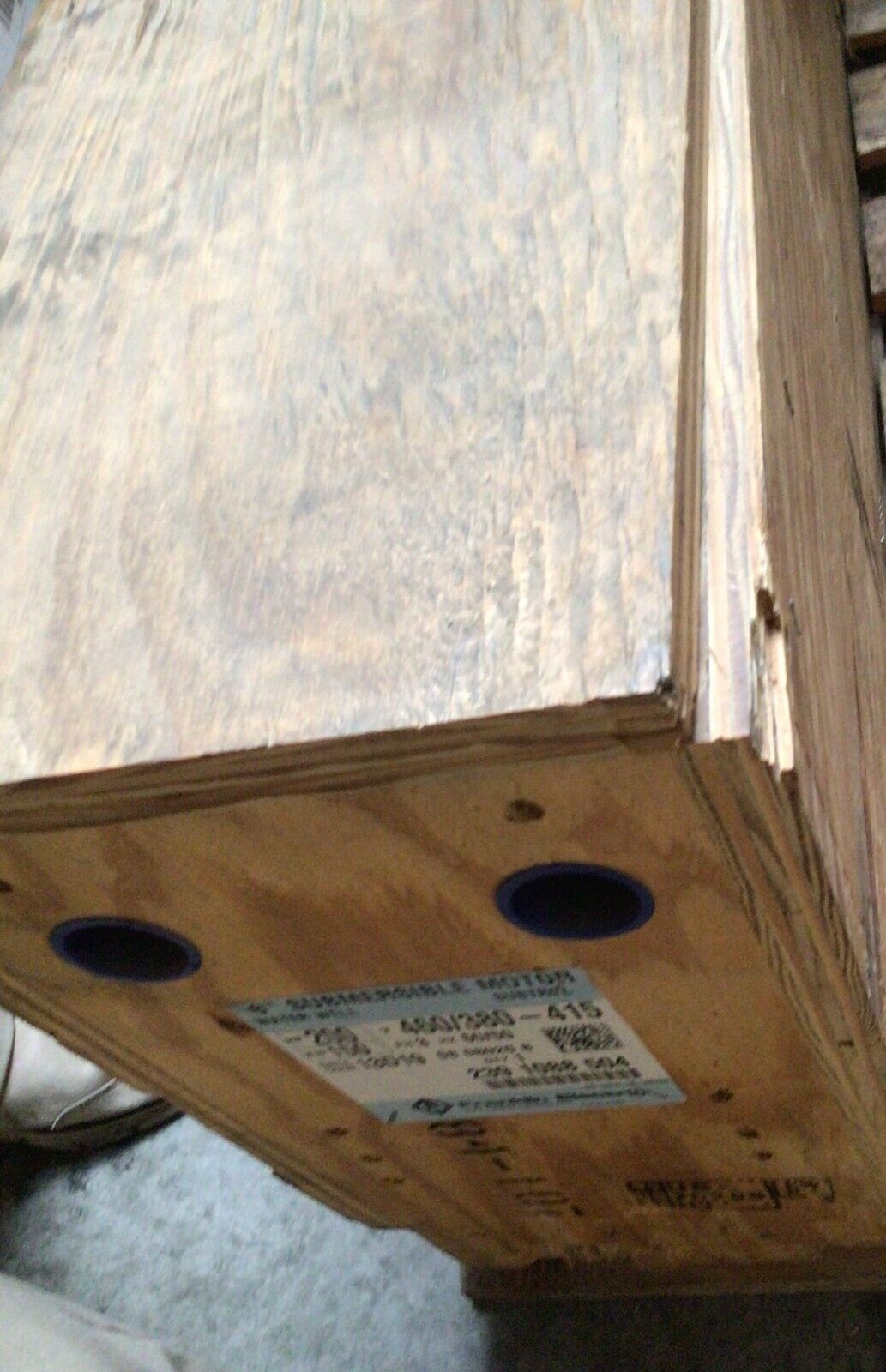

Carton Length: 108 ”
Carton Width: 9 ”
Carton Height: 17 ”
Shaft Diameter: 1.5 ”
Shaft End: Spline
Other
Drinking Water Agency Approvals: ANSI/NSF Standard 61
Electrical Agency Approvals: UL
Warranty Standard Time: 12 Mo. from Date of Install / 24 Mo. from Date of Manufacturing
Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.
