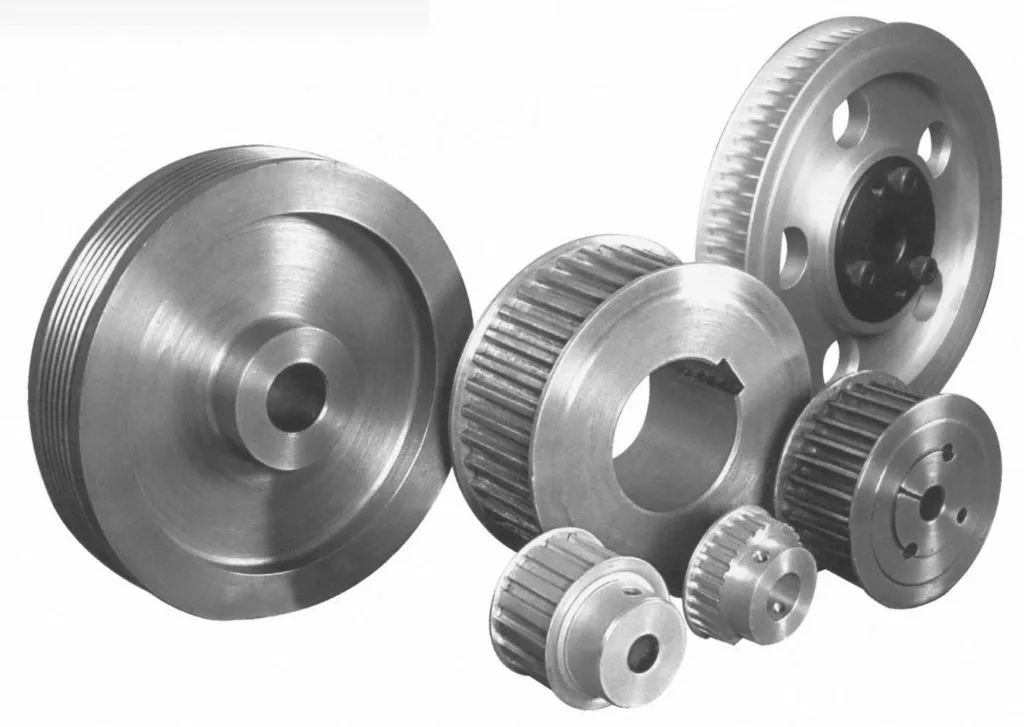

A timing belt pulley with a hub and flange is a mechanical component used in machinery to transmit power from the motor to the driven equipment through a timing belt. The pulley consists of a central hub and a raised section, or flange, that guides the timing belt.
The timing belt pulley with hub and flange is designed to work with a specific type and size of the timing belt. The number of teeth on the pulley and belt must match to ensure proper operation. The hub is typically made of aluminum or steel; the flange can be integral to the hub or attached separately.
One of the main advantages of using a timing belt pulley with a hub and flange is its ability to provide precise timing and synchronization between the motor and driven equipment. The flange helps keep the timing belt in place, which is essential for accurate power transmission. Additionally, the hub provides a secure attachment point for the pulley to the motor or driven equipment.
Another advantage of using a timing belt pulley with a hub and flange is its versatility in design. The flange can be positioned in different locations on the pulley, which allows for flexibility in the machinery’s layout. Additionally, the hub can be designed to accommodate different shaft sizes and configurations, making it easy to install in a wide range of machinery.
The timing belt pulley with hub and flange is a reliable and efficient component used in various machinery and industrial applications to ensure precise and accurate power transmission.
Disclaimer: Product images are for representation purposes only. The actual part/product could differ based on individual requirements. Please get in touch with us for more information.
