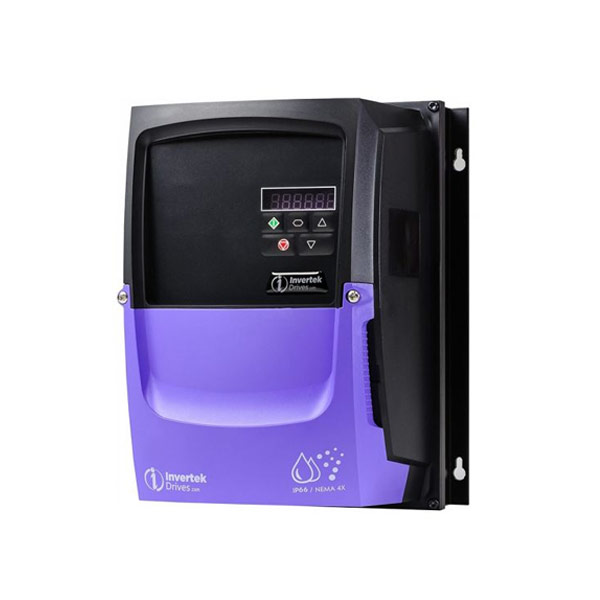

Invertek OptiDrive E3 Sensorless Vector Control for all types of Motor
Invertek Optidrive provides cutting-edge technology with a superior combination of powerful performance and accurate motor control for a complete spectrum of industries. It’s Rugged and reliable, Cost-effective with all required parameters, and the installation and commissioning is fast and easy.
Ideal for the following applications:
Industrial Model: Conveyors, Treadmills, Mixers
Fan Mode:?Swimming Pools, Transfer Pumps, Borehole Pumps, Fountains
Fan Mode: Air Handling Units, Ventilation and Circulating Fans, Air Curtains, Kitchen Extracts
Input Ratings:
Supply Voltage: 110-115 V
Input Phases: 1
Supply Current Continuous: 12.5 A
Supply Fuse or MCB (Type B): 16 A
Output Ratings:
Motor Output Rating: 0.55 kW (0.75 HP)
Output Voltage: 0 ? Supply Voltage
Output Current: 10.5?A
Cable Information:
Max Supply Cable Size: 8 mm? (0.01 sq in)
Max Motor Cable Size: 8 mm? (0.01 sq in)
Max Motor Cable Length: 100 m (328 ft)
Factory Build Options:
EMC Filter: Internal EMC Filter
Brake Transistor: Internal Braking Transistor
Enclosure: IP66 Indoor Non-switched
Dimensions:
Size: 2
Height: 257 mm (10.12 in)
Width: 188 mm (7.4 in)
Depth: 187 mm (7.36 in)
Weight: 4.1 kg (9.04 lbs)
Fixings: 4 x M4
Packaged Dimensions:
Height: 218 mm (8.58 in)
Width: 230 mm (9.06 in)
Depth: 370 mm (14.57 in)
Weight: 4.6 kg (10.14 lbs)
Specifications:
Frame: 2
Height: 10.1 in
Width: 7.4?in
Depth: 7.4?in
Input Voltage: 110 / 115V
Voltage: 110/115V
Rated Power: 0.55 kW/0.75 HP
Phase: 1
Disclaimer: Product images are for representation purposes only. Actual part/product could differ based on individual requirements. Please contact us for more information.
