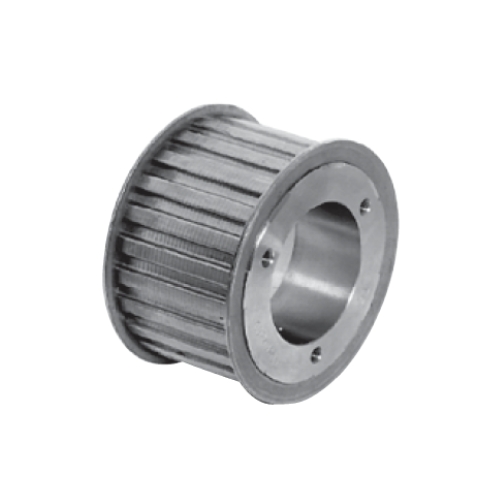

Circular pitch (also known as pitch) is an important factor for Synchro-Link Drives, just like it is for gear or chain drives. On the belt, pitch is the distance between tooth centers and is measured along the belt’s pitch line. On the pulley, the pitch is the distance between groove centers and is measured using the pitch curve.
The pitch line of a Synchro-Link Drive Belt is found within the tension member. The pitch circle of a Synchro-Link Drive Belt pulley corresponds to the pitch line of the belt mating with it.
Synchro-Link Drive Belts must be used with pulleys of the same pitch. A belt of one pitch cannot be successfully utilized with pulleys of another pitch.
Attention: The internal data of table “139” is corrupted!
